6 Channel |
Powder coating and painting industry in the tunnel baking process, it has high temperature requirements, temperature control accuracy, determine the ultimate effect of coating after curing. Curestar¡¯s coating thermometer equipped with a high performance data recorder, a variety of models of insulated boxes and custom dedicated thermocouple, it can provide best solutions for painting industry, to achieve the precise temperature and time capture and monitoring.
Improving spray curing process temperature and time monitoring can help customers find a defect in production, improve the technological level, thereby improving product quality and production efficiency, and maximize benefits. |
 |
- Applications
- Advantage
- Datalogger
- Heat Sink
- Equipment
- Options
|
| Automobile production-painting process |
| Coating, powder and specific coating |
| High temperature coating |
| Textile processing |
| Rotational moulding | |
| • Recorder has long standby time and great function |
| • According to customer needs, can customize various thickness insulation boxes, using composite |
| insulation technology, excellent insulation properties |
| • USB ports to charge and download, very simple |
| • Match with four type k thermocouple, and make test become easy |
| • Great software analysis, easy operation | |
|
Size/Weight |
180mm x 50mm x 19mm , 180g |
 |
|
Channels |
6 |
|
Memory |
65,500 Points |
|
Sample Rating |
0.1S-1Hour |
|
Temp Range |
-150¡æ -1250¡æ |
|
Accuracy |
¡À1¡æ |
|
Resolution |
£¼0.02¡æ |
|
Max Temprature |
85¡æ |
|
Battery |
NiHM Recharged |
|
Communication |
USB |
|
Thermocouples |
6 (Type K ,1m£© | |
|
Model |
TG1000(90mm) |
TG2000(140mm) |
|
|
Size |
380 x 190 x 90mm |
550 x 280 x 140mm |
|
Thermal Duration at£¨Minutes£© |
In Still Air |
In Still Air |
|
50¡æ |
4.5 |
7.5 |
|
100¡æ |
3.5 |
5.5 |
|
150¡æ |
2.0 |
4.0 |
|
200¡æ |
0.8 |
2.8 |
|
250¡æ |
- |
2.2 |
|
300¡æ |
- |
1.6 |
|
350¡æ |
- |
0.6 | |

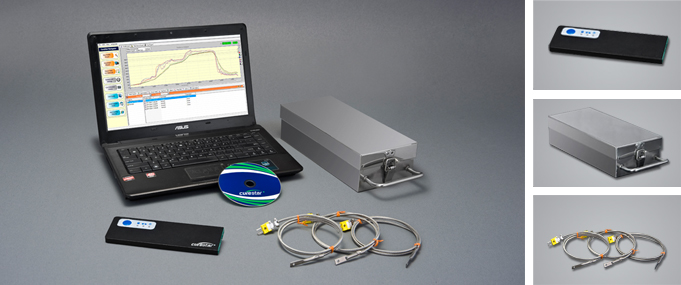

| 6 Channel Datalogger |
|
| 90mm Heatsink |
| 6 Type K Thermocouples(Length 1.5m) |
| USB Communication/Download Cable |
| Software CD |
| User Manual |
| Calibration Report |
| Black Case | |
| 4 Channel Datalogger |
|
| 140mm Heatsink |
| Armoured Thermocouples£¨1.5m/Custom Length£© |
| Mineral Netlike Protection Thermocouples£¨1.5m/Custom Length£© |
| Steel Netlike Protection Thermocouples£¨1.5m/Custom Length£© |
| Glass Fibre Protection Thermocouples£¨1.5m/Custom Length£© | |
|
