20 Channel |
In the course of pottery firing, The furnance temperature is the key factor of the production. The engineers need monitor accuracy temperatures of entire firing cycle urgently.
CureStar design several kinds of professional profiling systems, thinner size, large memory and high-performance heatsink. Our Systems can help the engineers capture accuracy temperature values quickly, and avoid making the burner failure and blocking cooling entrance.
The engineers can measure asymmetrical positive and negative slope of the reverse process of quartz by our systems. So help them solve the questions about asymmetrical temperatures of the kiln car and the superheating in coal-burning area. |
 |
- Applications
- Advantage
- Data Logger
- Heat Sink
- Equipment
- Options
|
| Tableware,Ceramic and sanitary ware manufacturing |
| Manufacutring of building materials - tile and flue lining |
|
|
|
| |
| • Small Recorder body size, easy operation |
| • Adopt USB ports to charge and communicate, easy and fast |
| • Small heatsink with huge function, different models for customers to choose |
| • Match with twenty type k thermocouple, design models and size according to customers’requirements |
| • Easy software operation, all functions can be edited easily |
| • Provide lifelong free calibration service, and get rid of unstable precision | |
|
Size/Weight |
180mm x 82mm x 20mm , 220g |
 |
|
Channels |
20 |
|
Memory |
240,000 Points |
|
Sample Rating |
0.1S-1Hour |
|
Temp Range |
-150℃ -1250℃ |
|
Accuracy |
±1℃ |
|
Resolution |
＜0.02℃ |
|
Max Temprature |
85℃ |
|
Battery |
NiHM Recharged |
|
Communication |
USB |
|
Thermocouples |
20 (Type K ,2m） | |
|
Model |
TM1000(120mm) |
TM2000(180mm) |
|
|
Size |
360 x 190 x120mm |
470 x 320 x180mm |
|
Thermal Duration at（Hours） |
In Still Air |
In Still Air |
|
50℃ |
150 |
400 |
|
100℃ |
120 |
320 |
|
150℃ |
98 |
250 |
|
200℃ |
48 |
115 |
|
250℃ |
40 |
90 |
|
300℃ |
28 |
70 |
|
400℃ |
12 |
35 |
|

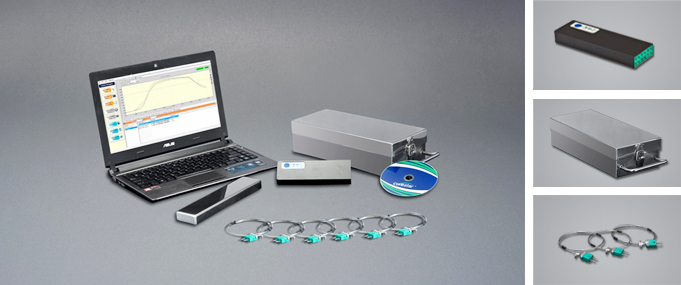

| Datalogger |
| 120mmHeatSink |
| 20 Type K Thermocouples(Length 2m) |
| USB Communication/Download Cable |
| Software CD |
| User Manual |
| Calibration Report |
| Black Case | |
| 16 Channel Datalogger / 24 Channel Datalogger |
|
150mmHeatSink |
| 200mmHeatsink / 300mmHeatSink |
| High-Temperature Armoured Thermocouples（Custom Size） |
| |
|
